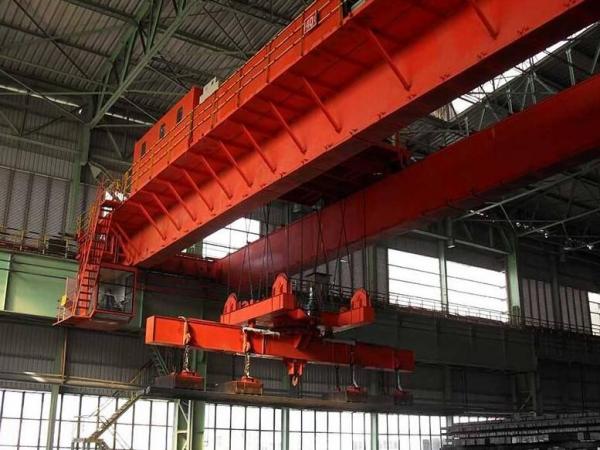

本起重機帶有可旋轉掛梁，適用于鋼廠、船廠、港口、堆場和倉儲等室內或露天的固定跨間，裝卸及搬運鋼板、型鋼、盤卷等物料。**適用于吊運不同規格且需水平旋轉的場合。掛梁為十字架結構，及安*性好，具有的防搖擺功能。掛梁下可以攜帶電磁吸盤、夾鉗等專*吊具。

　　注：

　　1、進入司機室的走臺方式為：端入、側入、頂入；

　　2、起重量包含掛梁及專*吊具白重；

　　3、掛梁大旋轉角度為±180°；

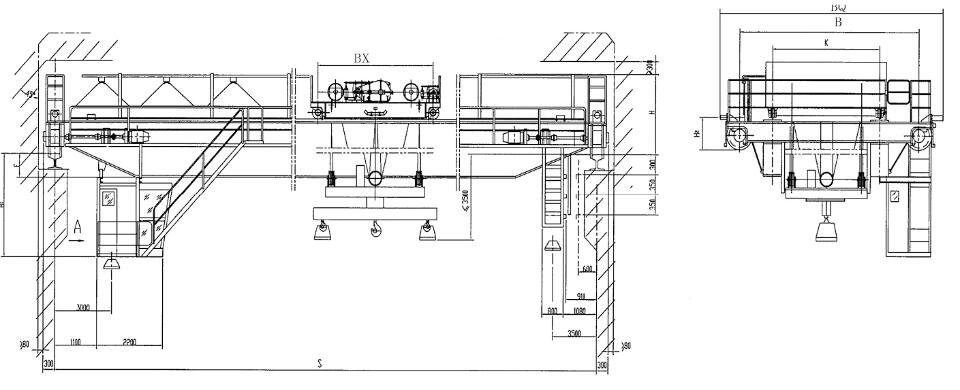

　　4、圖示極限位置尺寸S1、S2為掛梁旋轉90°后，掛梁中心線距軌道中心線數據；

　　5、以下數據為室內使用時；

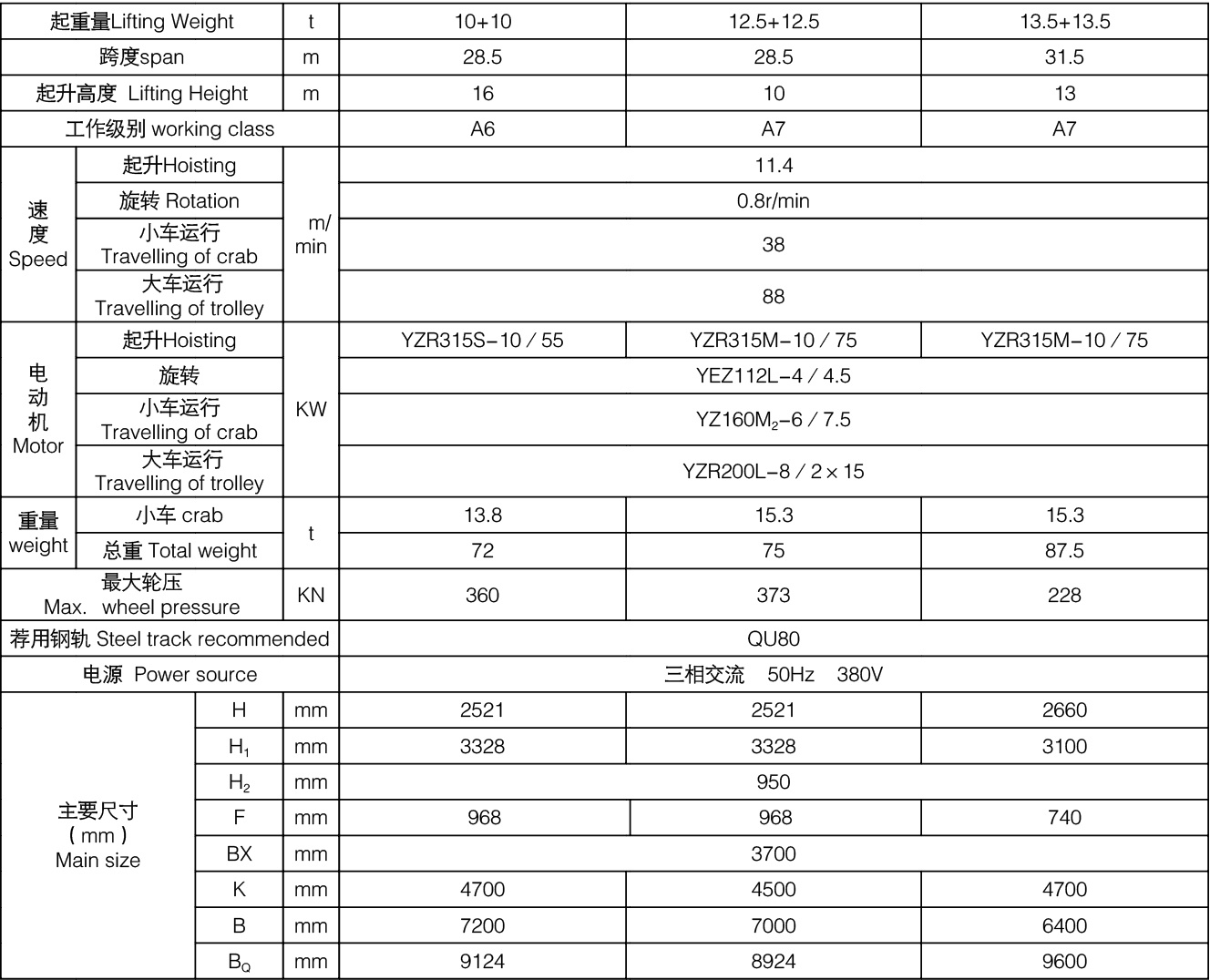

　　6、參數表中起重機總功率為行車本體功率，不含專*吊具功率

　　Low level slewing overhead crane with carrier-beam

　　The crane has slewing carrier-beam；is applicable to the fixed span at indoorsor outdoors of steel mill，Shipyard，port，yard and storage，etc．It is used for loading，unloading and carrying steel plate，profile steel，and spool，etc．It is especially applicable to lift material of different specifications and which needs Horizontal rotation．The carrier-beam is cross structure，which is reliable and has good safety features，and Has a certain function of preventing swinging．The lower part of the carrier-beam can bring special lifting appliances，such as magnetic chuck and tongs，etc

　　Notes：

　　1．The modes of entering cab：from the end；from the side；from the top；

　　2．The lifting weigh tincludes deadweight of the carrier-beam and speciallifting appliances；

　　3．The max.rotating angle ofcarrier-beam is±180。；

　　4．The sizes of the limiting position Sland S2 in The figureare the data between the center line of carrier-Beam and the center line of the rail after the carrier-beam rotates 90。 ；

　　5．All below-mentioned data is for being used indoors；

　　6．The total power of the crane in the parameter list is the power of The travelling crane，but excludes the Power of speciallifting appliances.
